Induktiver Taster mit kompaktem Kabelcontroller

von Angelika Albrecht

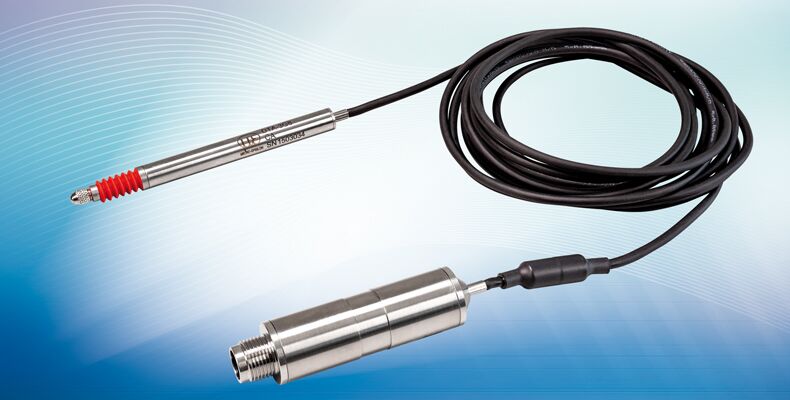

Der induktive Taster induSENSOR DTD ist für Serienlösungen in Maschinenbau und Automatisierung konzipiert. Das neue Sensorsystem besteht aus einem kompakten Taster und einem robusten Kabelcontroller. Dank der hohen Genauigkeit und der robusten Bauweise ist der induSENSOR DTD für industrielle Messaufgaben prädestiniert.

Der Aufbau des induSENSOR DTD ist sowohl äußerst kompakt als auch einfach gehalten. Die induktiven Sensoren werden beispielsweise zur Qualitätskontrolle und Produktionsüberwachung eingesetzt, wo sie Auflösungen bis in den Mikrometerbereich erreichen. Der Taster und der Controller sind über ein 3 m langes Kabel verbunden, welches so widerstandsfähig ist, dass es auch für Schleppkettenanwendungen verwendet werden kann. Der Sensor liefert auch in rauen Industrieumgebungen präzise Ergebnisse und erreicht hohe Temperaturstabilität. Zudem ist er sowohl schock- als auch vibrationsresistent. Der Controller ist in einem robusten Edelstahlgehäuse untergebracht, welches Schutz gegen Schmutz und Feuchtigkeit bietet.

Justierung und Kalibrierung des Systems erfolgen werksseitig. Dies hat den Vorteil, dass der Sensor per Plug & Play schnell einsatzbereit ist. Die Handhabung vereinfacht sich dadurch ebenfalls. Für den Einbau wird nur wenig Platz benötigt, da der Sensor lediglich einen Durchmesser von 8 mm und der Controller von 18 mm besitzt. Über eine Montageklammer ist der Sensor schnell an der richtigen Position montiert. Der Preis ist für Serienanwendungen mit hohen Stückzahlen optimiert. Erhältlich sind die Taster in den Messbereichen ±1 mm, ±3 mm, ±5 mm und ±10 mm. Das System verfügt über einen einstellbaren Strom– und Spannungsausgang sowie eine RS485 Schnittstelle.

Quelle und Vorschaubild: MICRO-EPSILON Messtechnik GmbH & Co. KG
